PIN Pin & Hole – standardized

I was looking for a pin design that can be applied to many situations. Sturdy, easy to print and quick to add to any model – a pin that checks many boxes.

Below you will find the measurements of the standard and, step by step, how to build the pin and the matching hole yourself in Fusion. If you have any improvements you can always let me know!

The finished pin in Fusion
20 mm

The Standard

Stick to these numbers and your pins and holes will fit everybody else’s. All measurements in mm.

Pin standard: dimensions in mmPin: 8 mm diameter, 20 mm long, 1 mm × 45° chamfer on both ends, 1 mm flat bottom, magnet pocket 4.2 mm diameter and 1.6 mm deep on both ends. Hole: 8.2 mm diameter, 10 mm deep, magnet pocket 4.2 mm diameter and 1.6 mm deep at the bottom.20Ø8Ø4.2 × 1.61 mm flat1 × 45°PINsame on both endsØ8.210Ø4.2 × 1.6HOLEsection view
PinHole
Diameter8.08.2 (0.2 tolerance)
Length / depth2010
Chamfer1 × 45°, both endssmall chamfer at the magnet pocket
Flat bottom1 (for flat printing)–
Magnet pocketØ 4.2 × 1.6, both endsØ 4.2 × 1.6, at the bottom
Magnets (optional)4.20 × 1.604.20 × 1.60
Magnets are not mandatory – the pin works without them too.

Build the Pin

Open Fusion and start a new design. Six steps, one sketch – let’s go.

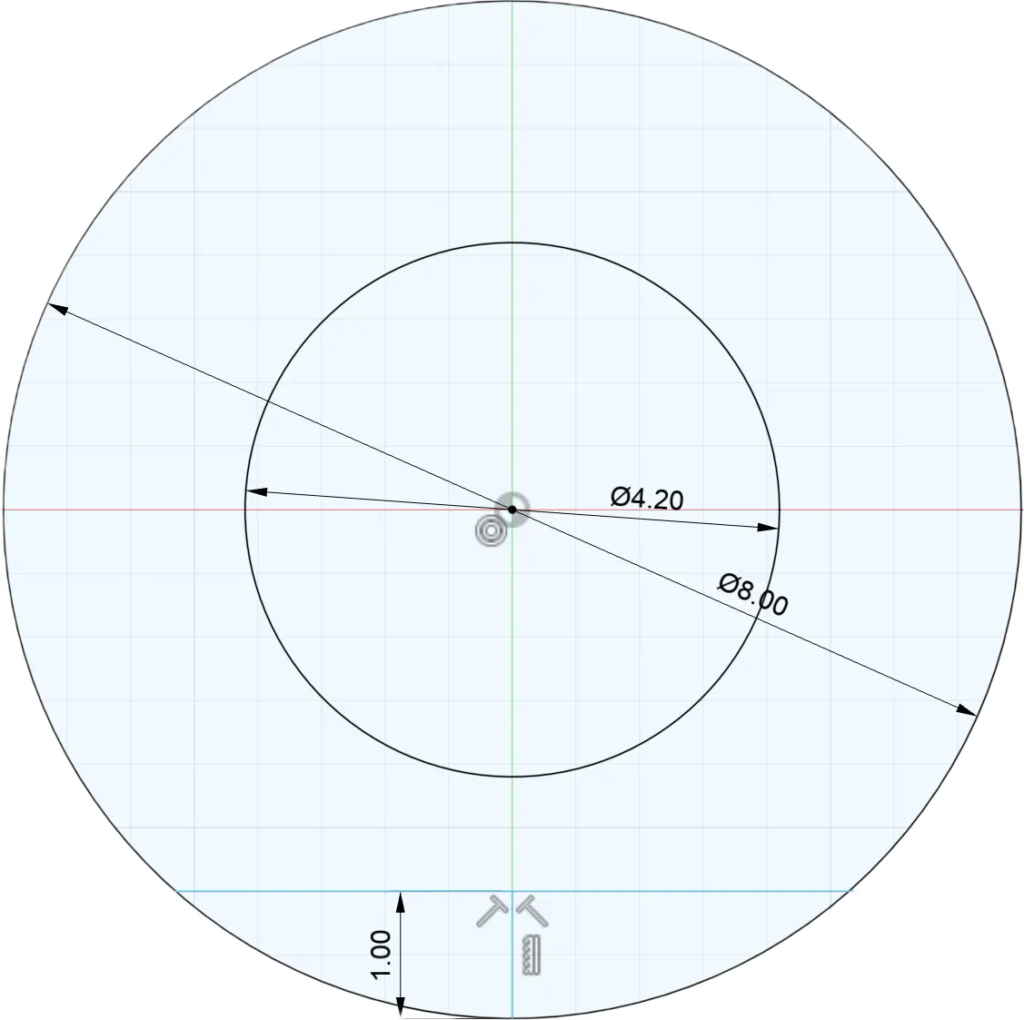

Sketch with the 8 mm and 4.2 mm circle

Base Design

Create a sketch on the XY plane and draw:

  • an 8 mm circle – that’s the pin
  • a 4.2 mm circle in the center – room for the magnet (0.2 mm of it is tolerance)
  • a line 1 mm above the bottom of the circle – this becomes the flat bottom, so the pin can be printed lying flat

Shortcuts: C circle, L line, D dimension.

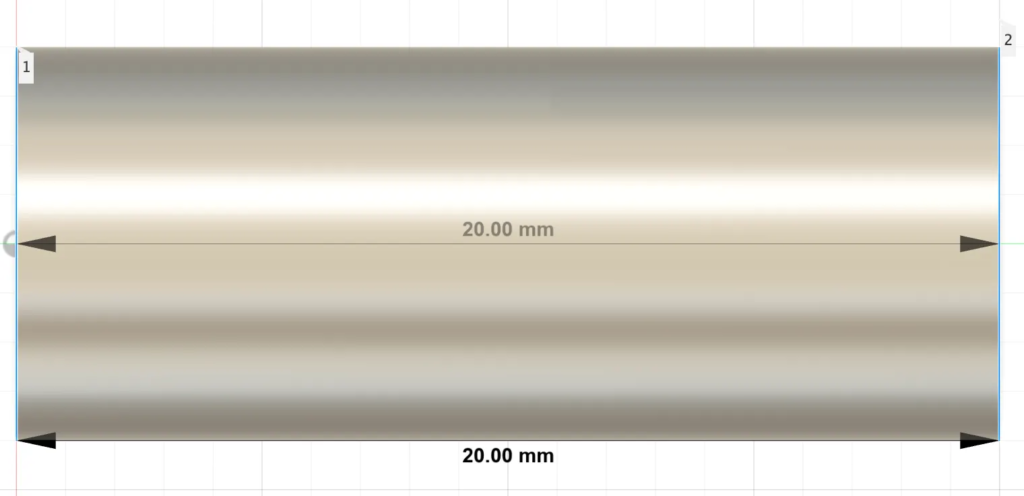

The sketch extruded to 20 mm

Extrude

Select all areas of the sketch and extrude them 20 mm (E).

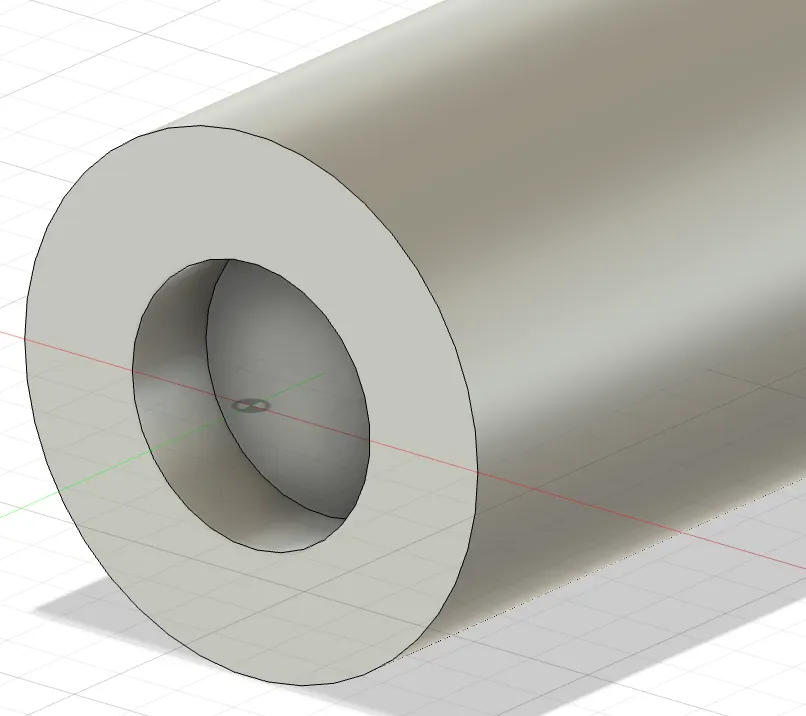

Magnet pocket cut into the end face

Poking the Hole

Use the 4.2 mm circle to cut a 1.6 mm deep hole into the end face (Extrude → Cut).

Same on the other side: sketch a 4.2 mm circle on the second end face and cut it 1.6 mm deep as well.

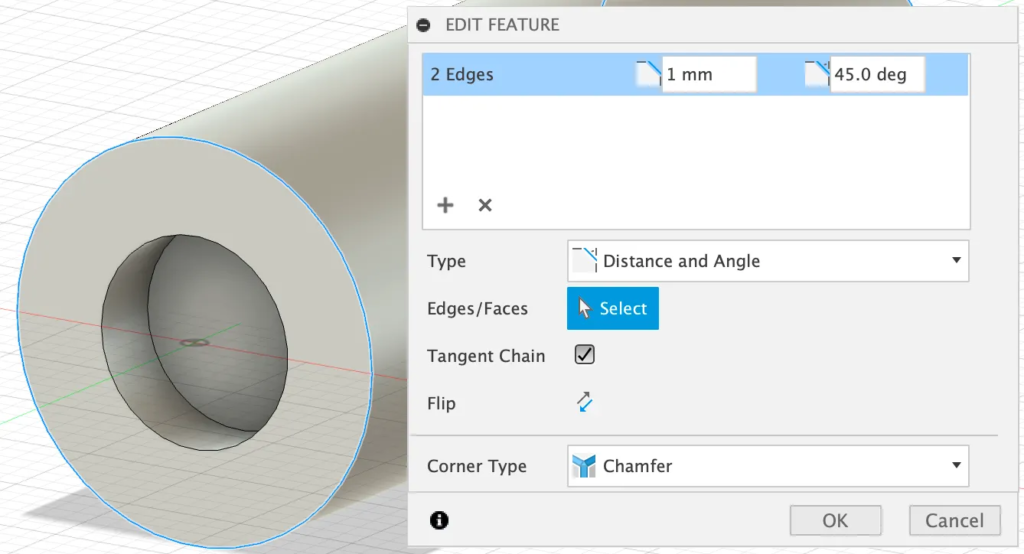

Chamfer dialog in Fusion

Chamfer

Modify → Chamfer: 1 mm at 45° on the round edges of both ends. This way the pin slides into the hole without a fight.

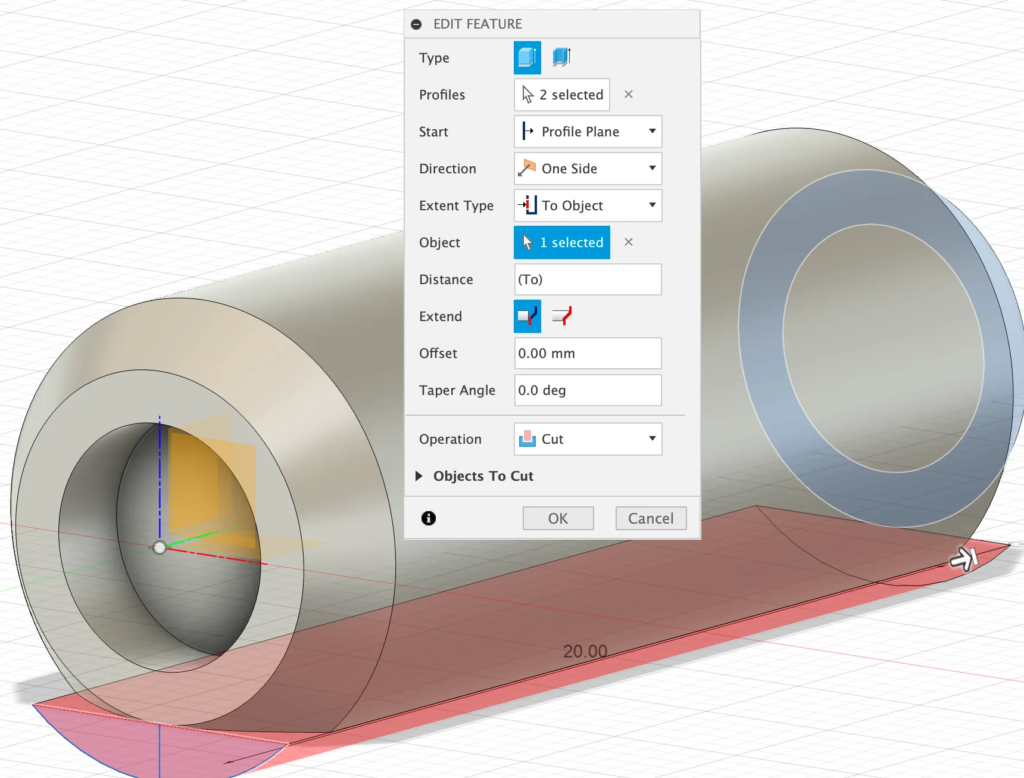

Cutting away the 1 mm segment

Cut Extrude

Remember the 1 mm line from step 1? Select the small area below it and cut it away along the whole pin (Extrude → Cut, through all). Now the pin has a flat bottom and prints lying flat.

The finished pin

Finished

Congratulations, Pin has been created!

Right-click the body → Save As Mesh to export the STL for your slicer.

Build the Hole

The hole goes into your own model. Four steps.

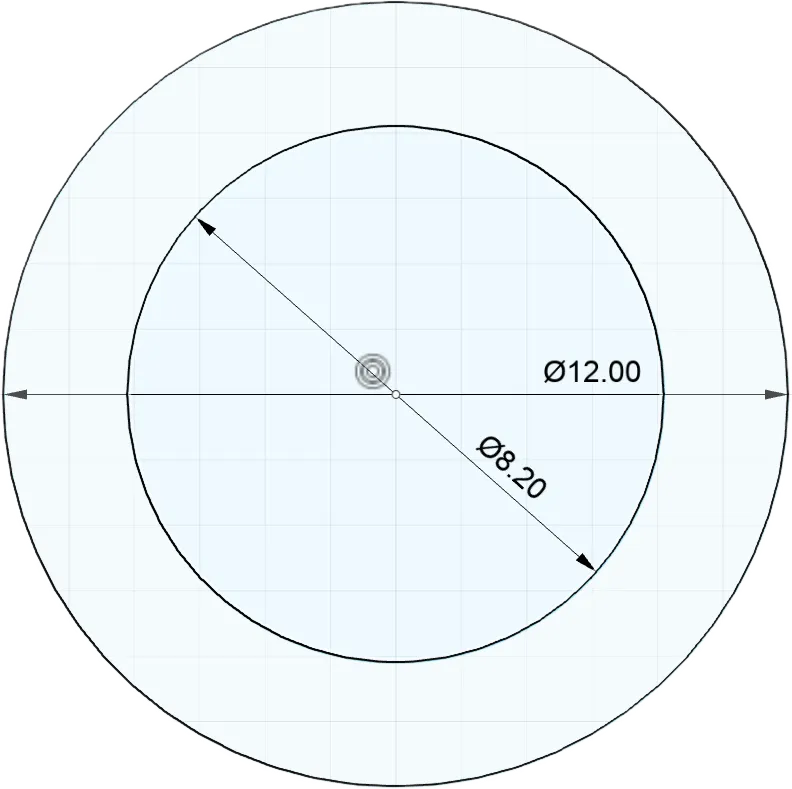

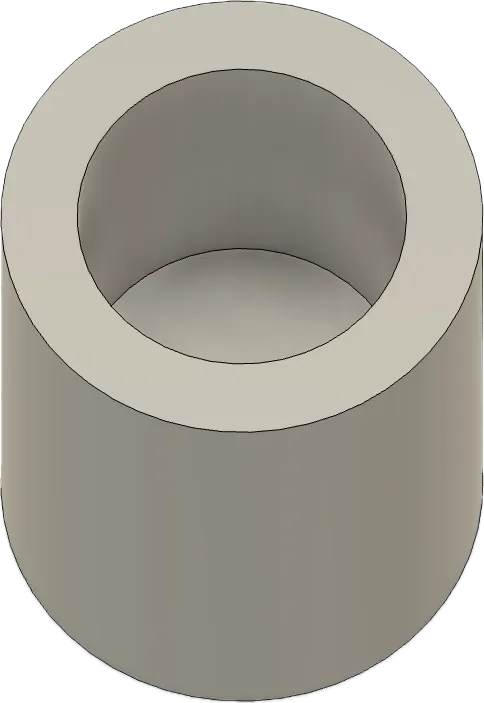

Sketch of the 8.2 mm circle

Digi Digi Hole

Sketch an 8.2 mm circle on the face where the pin should go. The pin is 8 mm, the extra 0.2 mm are tolerance.

Hole cut 10 mm deep

10 mm Deep

Cut the circle 10 mm deep. Half of the pin goes into this part, the other half into the second part – together the 20 mm pin disappears completely.

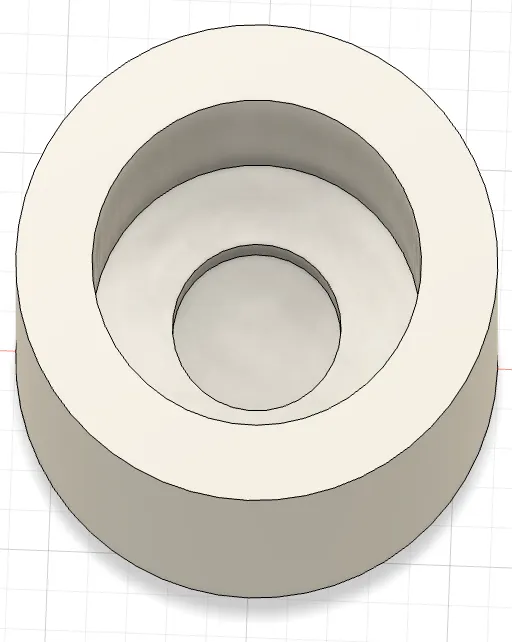

Magnet pocket at the bottom of the hole

Adding Magnets

At the bottom of the hole: a 4.2 mm circle, cut 1.6 mm deep.

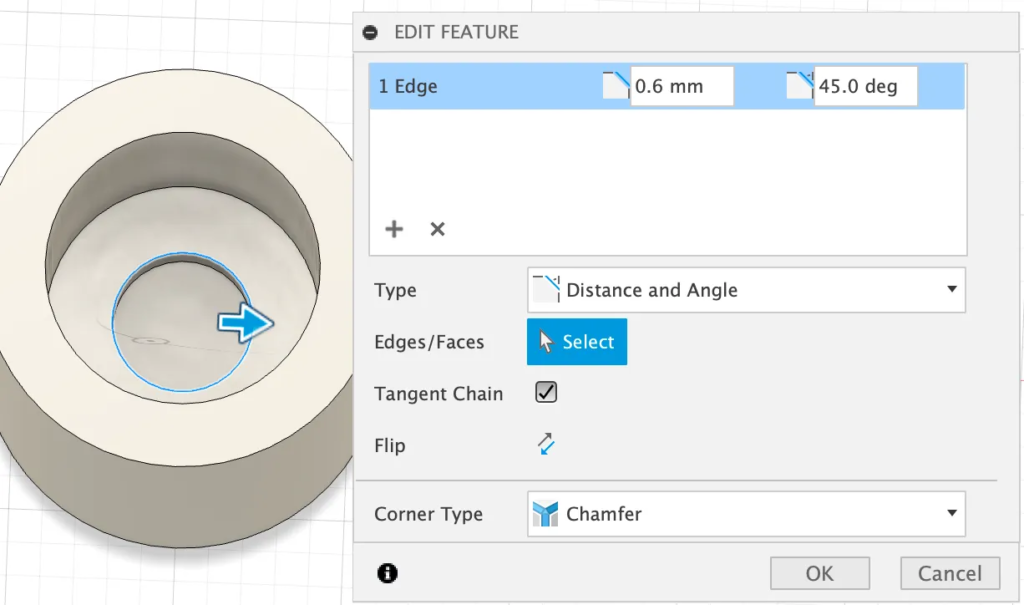

Chamfer on the magnet pocket

Fitting the Magnets

Adding a small chamfer to the edge of the magnet pocket helps with fitting the magnets in place.

Shortcut: the negative STL

No time for modelling? On Printables you will find three STL files: the hole, the pin and a negative. Load the negative into your slicer as a negative part and subtract it from an existing model – instant pin hole.

Results & Application

Sample prints of pins with magnets

Sample Prints

The sample prints came out great. I experimented with various lengths. The magnets were glued in with basic super glue, and I glued some filament to the end of my tester to get it out of the holes again.

Work-Mat

Finish your 3D prints off in style, while protecting your table from glue etc. The Work-Mat uses the same pin holes.

Improvements?

If you have any improvements you can always let me know!
