STANDARDS Setting Standards for 3D printing
I want to add to the community. There are so many amazing designs out there. And many awesome people in the community that add to the hobby. I’m searching for more Standards like Gridfinity that added to the organization of many tools, wardrobes and closets.
This page collects all YEZT standards – plus the community standards I build on, like Gridfinity.
The Standards
Stick to the numbers and your parts fit everybody else’s.
Released

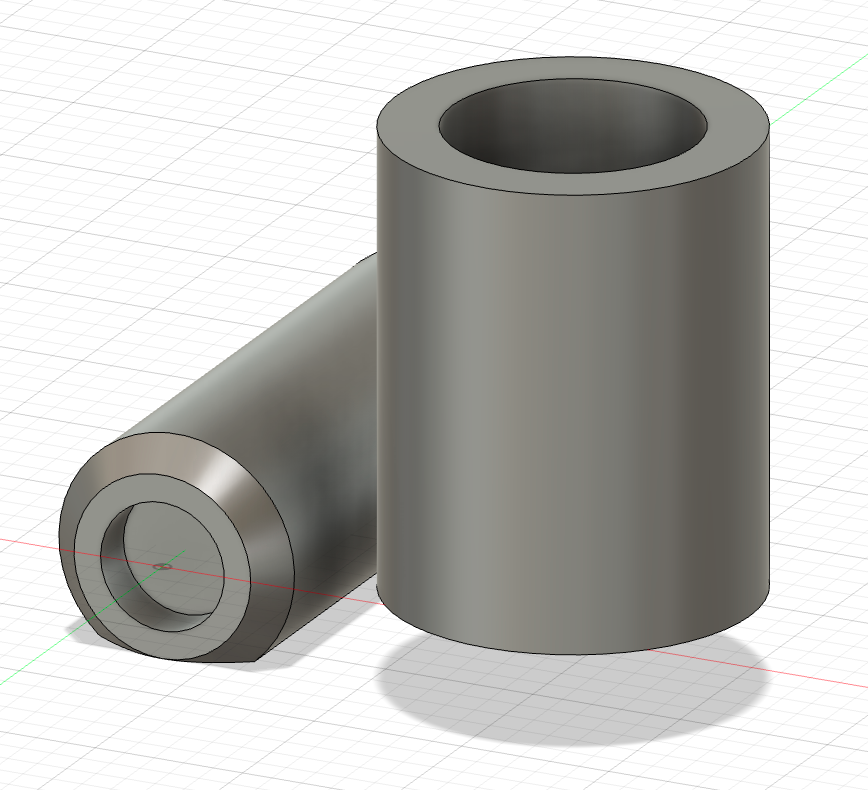

Pin
A sturdy pin with an optional magnet. Connects parts, keeps them in place and comes apart again.
Pin Ø 8 × 20 mm · Hole Ø 8.2 × 10 mm · Magnets optional
Used in: Work-Mat
Community
Gridfinity
The open 42 mm storage grid by Zack Freedman. Not a YEZT standard – but the one every other standard has to live up to. Rebuilt in Fusion and explained.
Grid 42 × 42 mm · Height 7 mm · Magnets Ø 6 × 2 optional
Beta

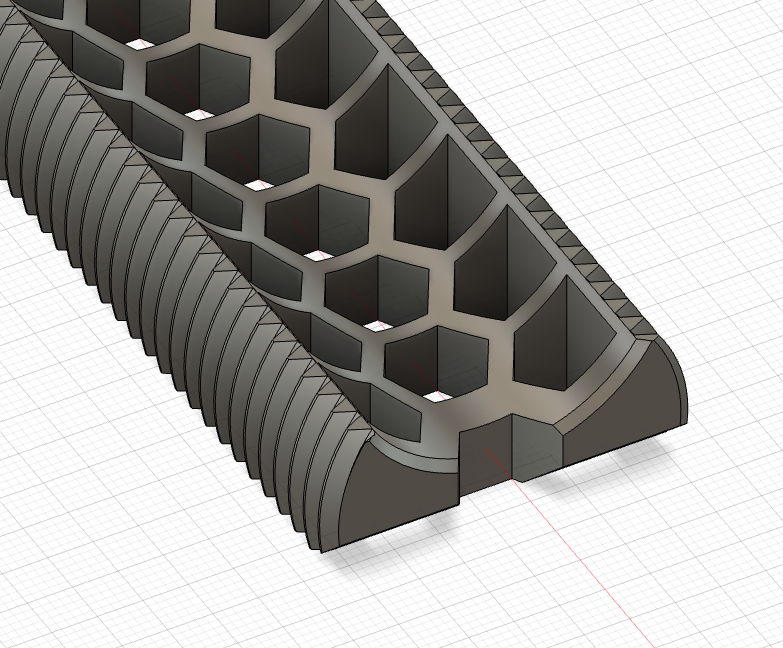

40 mm
A rugged rail with an M40 thread on both sides. Anything with an M40 nut thread screws onto it – clamps, mounts, holders. First accessories are done, yours are next.
M40 × 3 · prints flat, no supports · 102 / 162 / 246 mm
Open
Your idea?
Missing a standard that would make 3D printing easier for everyone? Let me know – maybe it becomes the next one.
